총 18개 상품
부품제조사핵심 사양견적 담기
DA05
성문전자
SPST (1극쌍투 ON-OFF), 5회로 · DIP-10 (Right Angle THT) · Through Hole (THT), Right Angle · 25mA 24VDC (또는 100mA 5VDC)
SK13D01
이스턴
1P3T (SP3T, Single Pole Triple Throw, 3-Position ON-OFF-ON) · Through-Hole DIP, Horizontal / Right-Angle, 4-pin (2mm pitch) · Through-Hole, PCB Horizontal (Right Angle) · DC 50V / 0.5A
DA-02
성문전자
SPST 2P (2-position DIP switch, each circuit is SPST) · DIP, Through-Hole, Right Angle, 2-position · Through-Hole, Right Angle (앵글) · 25mA / 24V DC
DA-03
성문전자
3PST (3-pole, SPST per pole) · 6-pin DIP Right Angle (2.54mm pitch) · Through Hole (PCB Mount, Right Angle) · 3-pole, 2.54mm pitch, Right Angle Piano DIP Switch
DA-04
성문전자
SPST 4-pole (4-position) · DIP-8 (Through Hole, Right Angle) · Through Hole (Right Angle / Horizontal Mount) · 4-pole, 2.54mm pitch, Right Angle Type
SSR-10
성문전자
DEC/BCD, 10-position (0–9), real-code output · THT DIP (10×10mm, 3×3 pin grid) · THT (Through-Hole, DIP type, straight) · 42V DC / 150mA (switching); 42V DC / 200mA (non-switching); contact resistance max 80mΩ
55014
Cole Her…
SPST (Single Pole, Single Throw) — On/Off · Panel-mount toggle switch — no IC package code; threaded stem 15/32"-32 · Panel Mount (15/32"-32 threaded stem, 11.9mm long; fits panels up to 9/32" / 7.1mm thick) · 25A @ 12V DC / 15A @ 24V DC / 10A @ 36V DC
NDA-05
성문전자
SPST per pole, 5-pole independent · DIP-10 (5-pole, 2-row, 2.54mm pitch, right-angle THT) · Through-Hole, Right Angle (Horizontal) · 5-position, 2.54mm pitch, Piano Key actuator
KP05R
CIT Rela…
SPST (5 positions / 10 pins) · 10-pin DIP, Right Angle Through Hole · Through Hole, Right Angle · 24VDC / 25mA

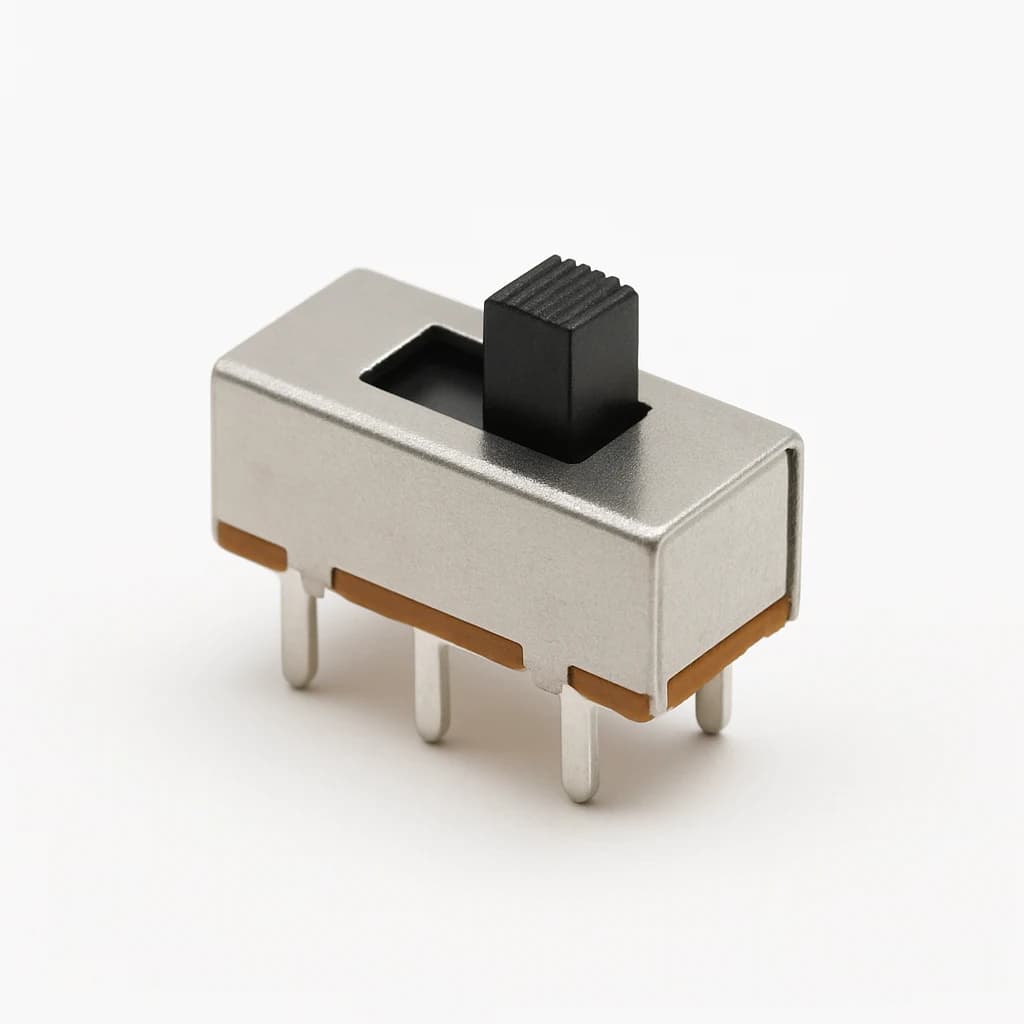

BSD-10-1S
성문전자
1 Pole (SPST, 1-circuit) · DIP (Through-Hole), 2-pin · Through-Hole (DIP) · BSD Series, 1-pole DIP Slide Switch
